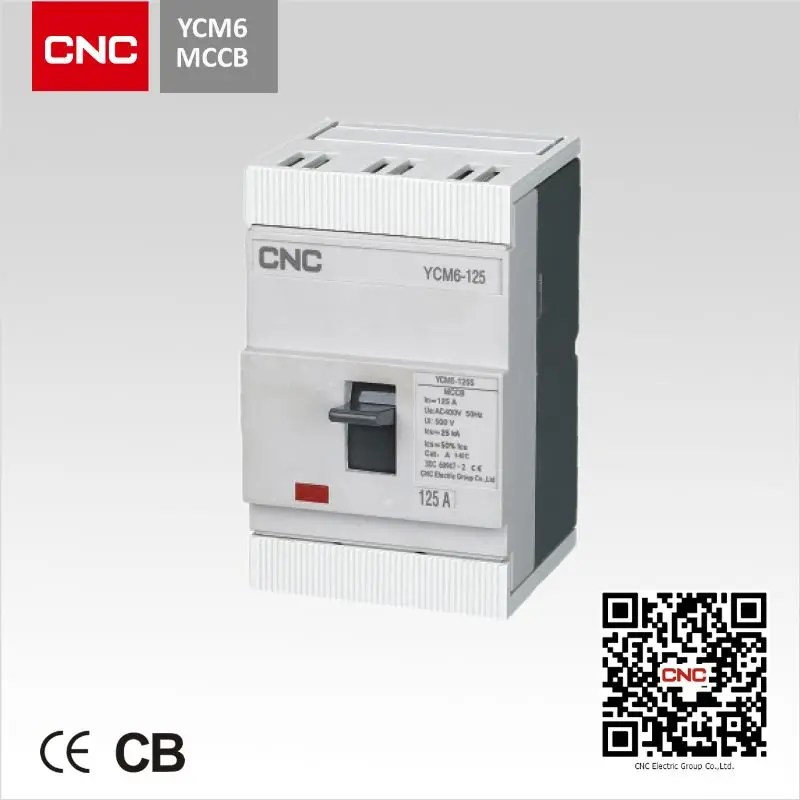

China TOP 100 Supplier 250 AMP 3P YCM6 Circuit Breakers MCCB

FOB Reference Price:Get Latest Price
$0.90 - $100.00 / Piece | 10 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CNC/OEM
Model Number:
YCM6
Type:
Moulded Case
Poles Number:
3,4
Certificate:
ISO9001,CE
Rated Voltage:
AC660V,250V(DC)
Rated Current:
12.5-800A
Colour:
Black,White
Frequency:
50/60Hz
Rated insulation voltage:
660V
Breaking Capacity:
150KA
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Export package, Carton
Port
Ningbo , Shanghai
Lead Time :
7~15 Days



Product Description

  China TOP 100 Supplier 250 AMP 3P YCM6 Circuit Breakers MCCB



- China Top 500 Enterprise

- 26 years rich experience in manufacturing electrical products

- Sales in over 100 countries

Product Overview
         YCM6 MCCB series moulded case circuit breaker is suitable for the circuit of AC 50/60Hz, rated insulation voltage 660V, rated operating voltage under AC 660V, 250V(DC), rated operating current 12.5-800A. It is distributing energy of electricity and infrequent making and circuit under normal conditions. YCM2 are provided with the function of the protection against iverload and short circuit and indervoltage. The YCM2 complies with standard of IEC60947-2.     China TOP 100 Supplier 250 AMP 3P YCM6 Circuit Breakers MCCB

Product Description of   250 AMP 3P YCM6 Circuit Breakers MCCB

1. Number of pole: 3, 4Pole
2. Rated voltage: 690AV
3. Rated current: 12.5~630A
4. Breaking Capacity: 150KA
5. Electrical endurance: 8500 times
6. Output; 2000PCS/day
7. CE, CB, ISO9001, 14001
8. OEM   China TOP 100 Supplier 250 AMP 3P YCM6 Circuit Breakers MCCB   China TOP 100 Supplier 250 AMP 3P YCM6 Circuit Breakers MCCB

Specifications

TypeRated current(A)Pole NO.Rated insulating voltage (V)Rated operating voltage (V)Arcing distance (mm)Ultimate short circuit breaking capacity (kA)Service short circuit breaking capacity (kA)operation performace (endurance)Overall dimensions
YCM6-125E12.5-1252.3.4660381≤3015--7.5-3000700012075/10170
YCM6-125S25-2016
YCM6-160S16-16003582018-4000600012090/12070
-160H50104025
YCM6 -250S YCM6100-25035104018-20006000170105/140103.5
YCM6-250M50164030
YCM6-250H65184048
YCM6-400S200-40035164018-10004000254140/184103.5
YCM6-400M50204030
YCM6-400H65254048
YCM6-630S400-63050204030-10004000268210/280103.5
YCM6-630M65254048
YCM6-630H80304060
YCM6-800S500-80050204030-10004000268210/280103.5
YCM6-800M65254048
YCM6-800H80304060

  China TOP 100 Supplier 250 AMP 3P YCM6 Circuit Breakers MCCB  China TOP 100 Supplier 250 AMP 3P YCM6 Circuit Breakers MCCB

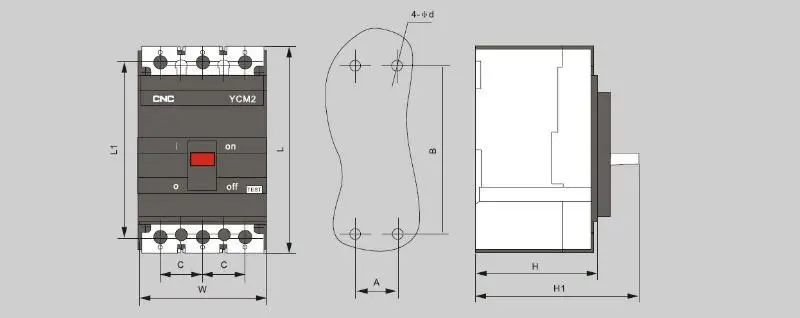

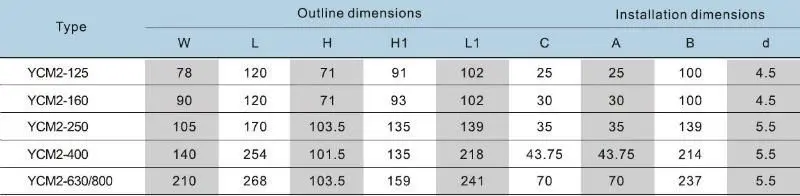

Overall and mounting dimensions (mm)
