GN19-12 type indoor high voltage 132kv isolator

FOB Reference Price:Get Latest Price
$192.00 - $900.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CNC
Model Number:
GN19-12
Rated voltage:
12KV
Rated current:
400-1250A
Rated short-time withstand current:
12.5-40KA
Frequency:
50Hz
Poles Number:
3
Place:
Indoor
Material:
porcelain or polymer
Certification:
ISO9001
Standard:
IEC3804-9
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
export packing
Port
Ningbo/Shanghai
Lead Time :
1 week

-National Inspection-free Product

-China Famous Export Enterprise

-National &International Project Supplier



GN19-12 Indoor High-voltage 132kv isolator



Main application

GN19-12 type indoor high voltage 132kv isolator series high voltage switch equipment used for rated voltage 10kV, AC 50Hz and below power system, equipped with CS6-1 type manual operating mechanism, open, close the circuit in the case of no load, voltaged. There are derivatives such as anti pollution, high prototype and added charged display device type, etc.



Ambient condition
1. Altitude: not over 1000m;
2. Ambient temperature: -25 Celsius ~+40 Celsius ;
3. Relative humidity: daily average not over 95% , monthly average not over 90% ;
4. Earthquake intensity: not over 8 degree;
5. Applicable occasions should free from inflammables, explosives, corrosives and severe vibration.



Model

 GN19-12 model



Product feature

1. Scientific design and simple structure

2. Large clearance between gaps

3. Small operating power and steady performance

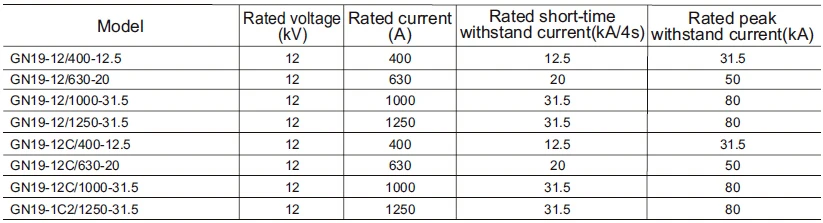

 Main technical specification

 GN19-12 technical specification

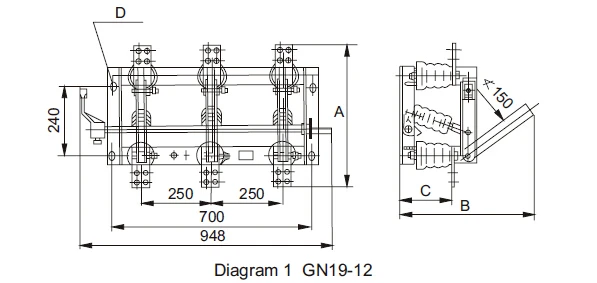

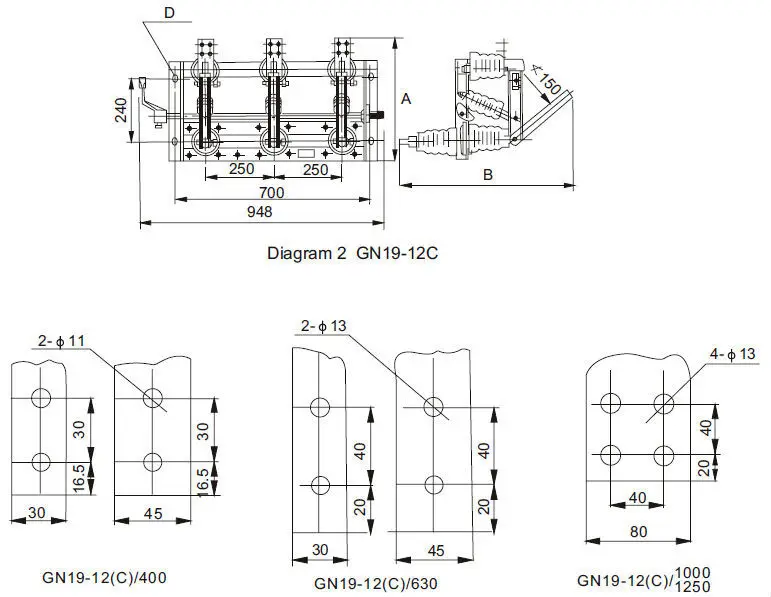

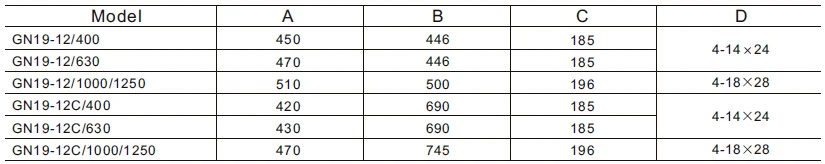

 Outline dimension

GN19-12 Outline dimension 01GN19-12 Outline dimension 02GN19-12 Outline dimension 03
