ELCB YCM3LE tpn mccb

FOB Reference Price:Get Latest Price
$10.00 - $200.00 / Piece | 20 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CNC
Model Number:
YCM3LE
Type:
Earth Leakage
Poles Number:
3P, 4P
Rated current:
630A
Ambient air temperature:
-5℃~+40℃
Altitude:
=2000m
Pollution level:
3
Rated Voltage:
400V
Frequency:
50/60Hz
Action Current:
≤30mA
Standard:
IEC974-2
Mounting Mode:
vertical or horizontal
Color:
grey and white
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
as your requirememt
Port
Shanghai or Ningbo
Lead Time :
in ONE week

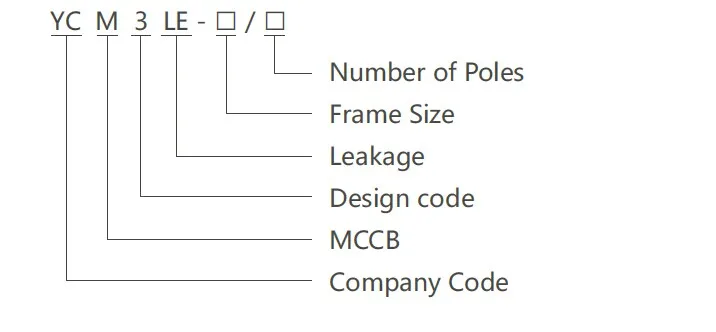

YCM3LE

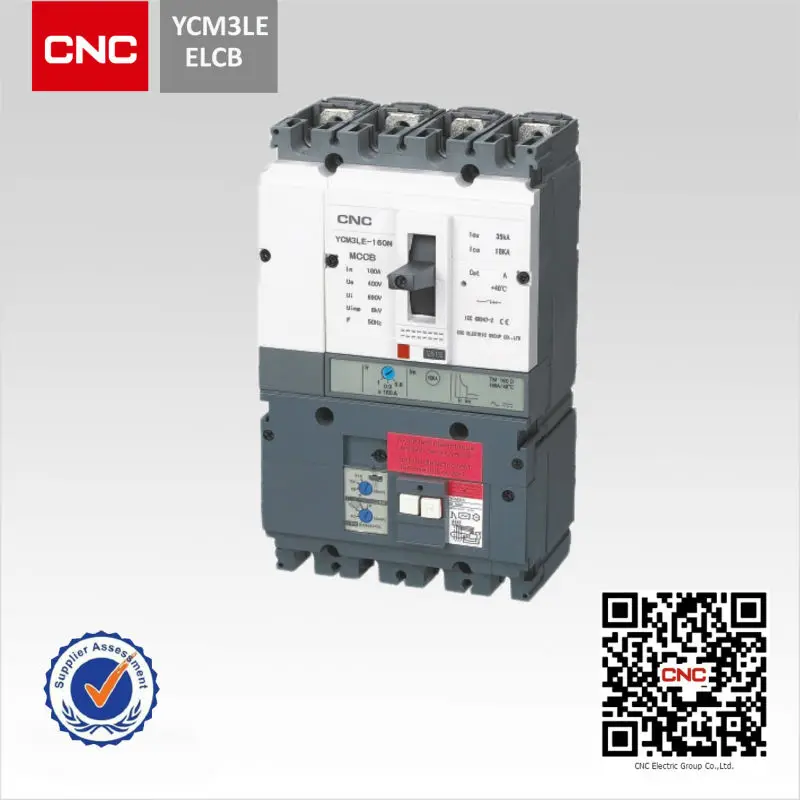

Earth Leakage Circuit Breaker



YCM3LE is a new design to combine leakage module, electrical apparatus release, zero-sequence current transformer perfectly together. It's easy to install.
The intelligent RC module and universal controller make adjusting residual current and regulating delay time possible.



YCM3LE







Specification of  tpn mccb

1.Electrical Ratings: Voltage to 400V; Current to 630A; 50/60Hz;
2.Mounting Mode: Vertical or Horizontal
3.Action Current≤30mA
4.Function: Protection for Overload, Short Circuit, Undervoltage and also for the
   transform infrequently.







Demension and Weight   of  tpn mccb



Dimension and weight

poles

YCM3LE-100/160

YCM3LE-250

YCM3LE-400/630

WxHxD(mm)

3p

105x236x86



135x355x110

4p

140x236x86



180x355x110

Weight(kg)

3p

2.5

2.8

8.8

4p

3.2

3.4

10.8

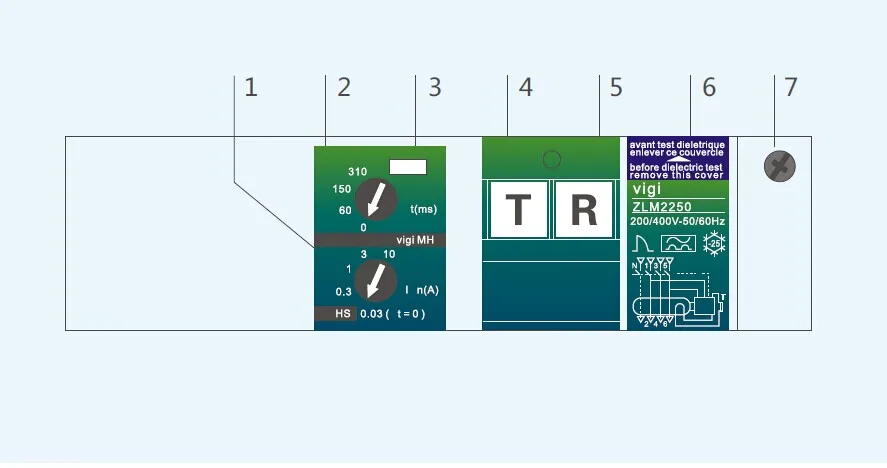

Accessories of connection  of tpn mccb



1.Set for response rate 2.Set for Time Relay(to tell earthing protection) 3.Setting seal cover  4.Testing button for earthing protection  5.Resetting button  6.Name plate  7.Position of SDV auxiliary switch

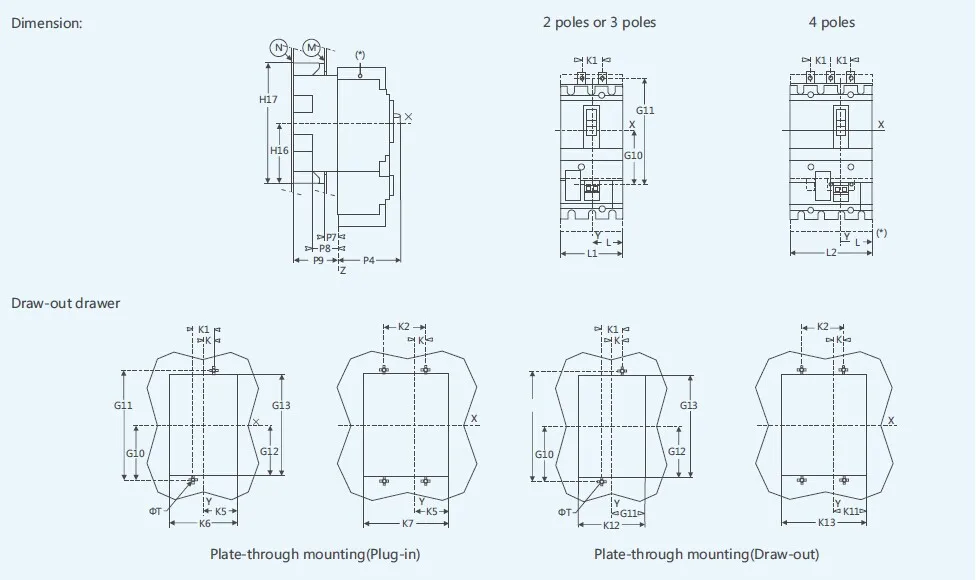

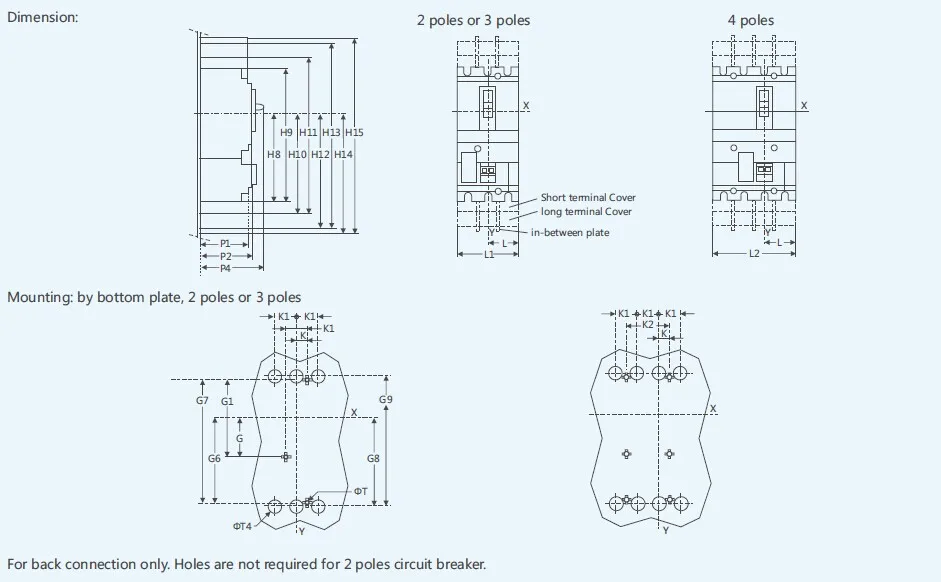

Outline & Mounting Dimension of tpn mccb

Fixed-type YCM3LE-100~630



 Plug-in & Draw-out YCM3LE-100~630






  YCM3LE
